Tube Drag Chain
Conveyor Systems
Dust-Free Bulk Material Handling
for Powders, Granules and Bulk Solids
- Fully Enclosed & Dust-Free
- Flexible Routing: Horizontal / Vertical / Complex Layouts
- Multiple Inlets & Outlets
- Gentle Handling & Low Maintenance
Engineered to Solve Your Handling Challenges
◒
Gentle Handling
Low-speed conveying helps minimize product breakage and preserve material integrity.
↱
Flexible Routing
Horizontal, vertical, inclined and complex layouts can be designed around your plant.
ϟ
Low Energy
Mechanical conveying can reduce compressed-air demand compared with pneumatic systems.
⌬
Multiple Inlets & Outlets
Multi-point feeding and discharging can be configured along the conveying line.
♢
Easy Maintenance
Simple structure with inspection points for cleaning, checking and maintenance.

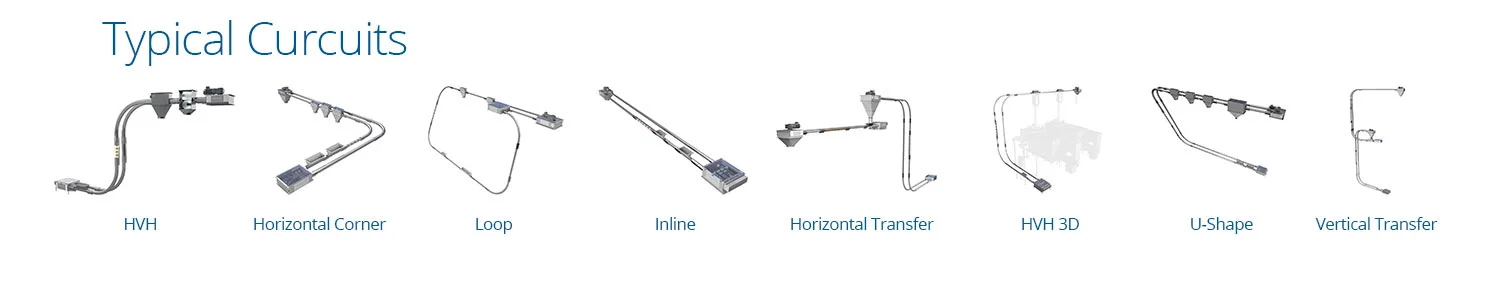

Typical Conveying Circuits
Adaptable to various plant layouts and process requirements

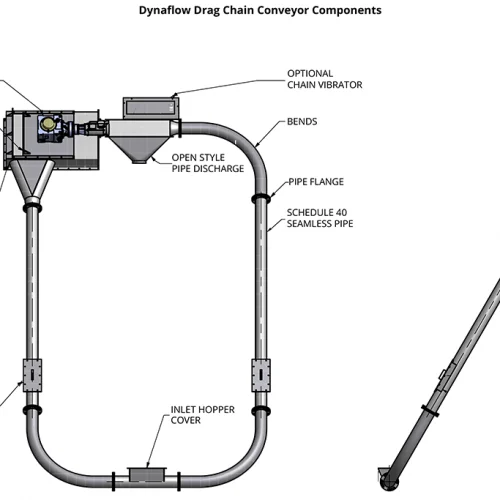

How It Works
- Material enters the inlet hopper.
- Chain with discs moves inside the sealed tube.
- Material is gently dragged by the discs.
- Conveyed to the designed discharge point(s).
- Multiple inlets and outlets can be configured.

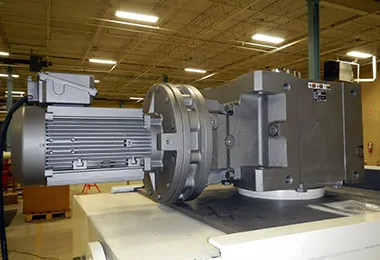

Key Components
Watch the conveying process
See UNITFINE Tube Drag Conveyor in Action
Smooth and enclosed powder conveying for chemical, food, mineral and battery material production lines.
Real Projects. Proven Performance.

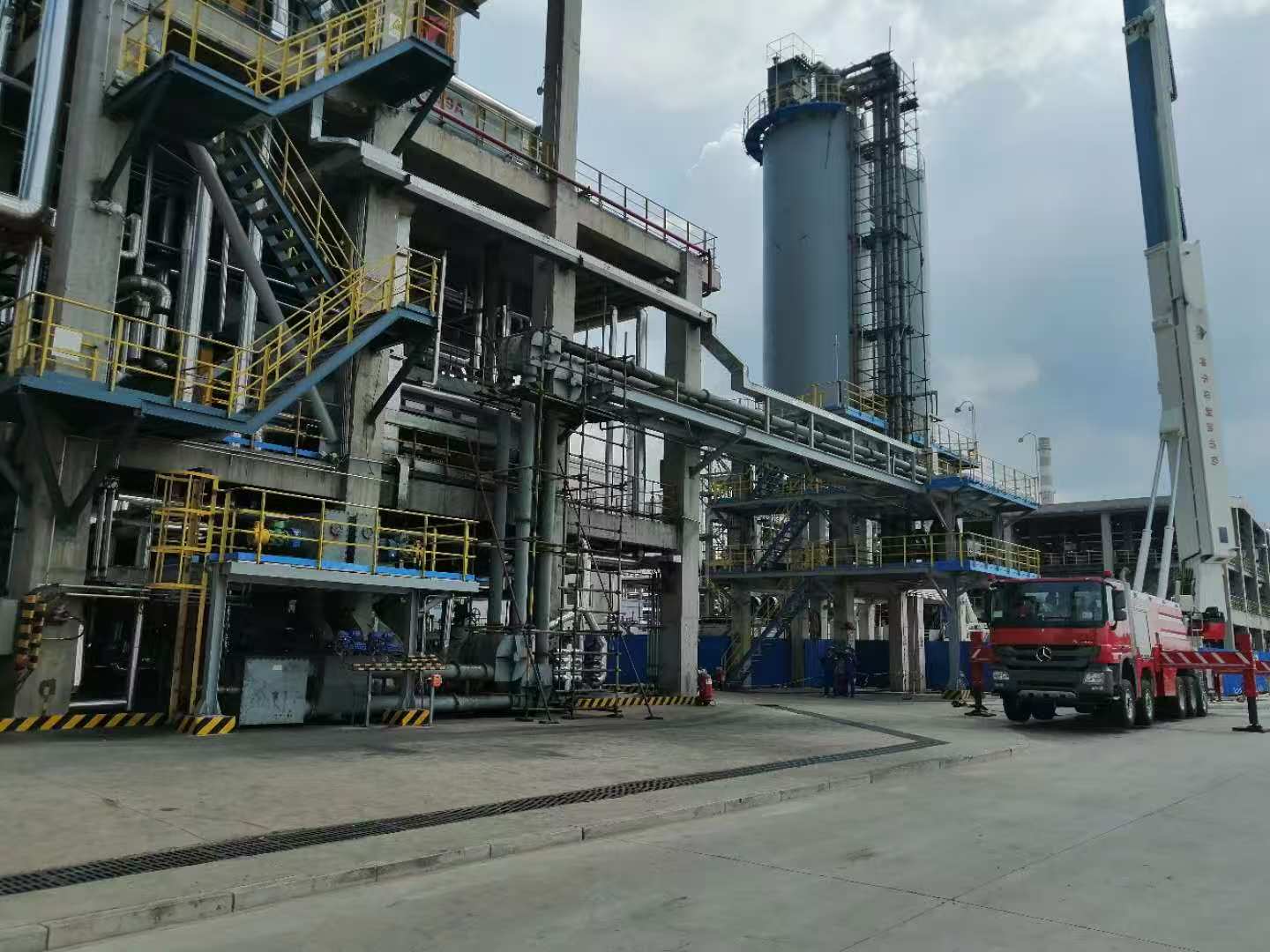

Titanium Dioxide Project
Capacity: 20 TPH
Distance: 85 m
Configuration: Horizontal + Vertical
Material: Titanium Dioxide

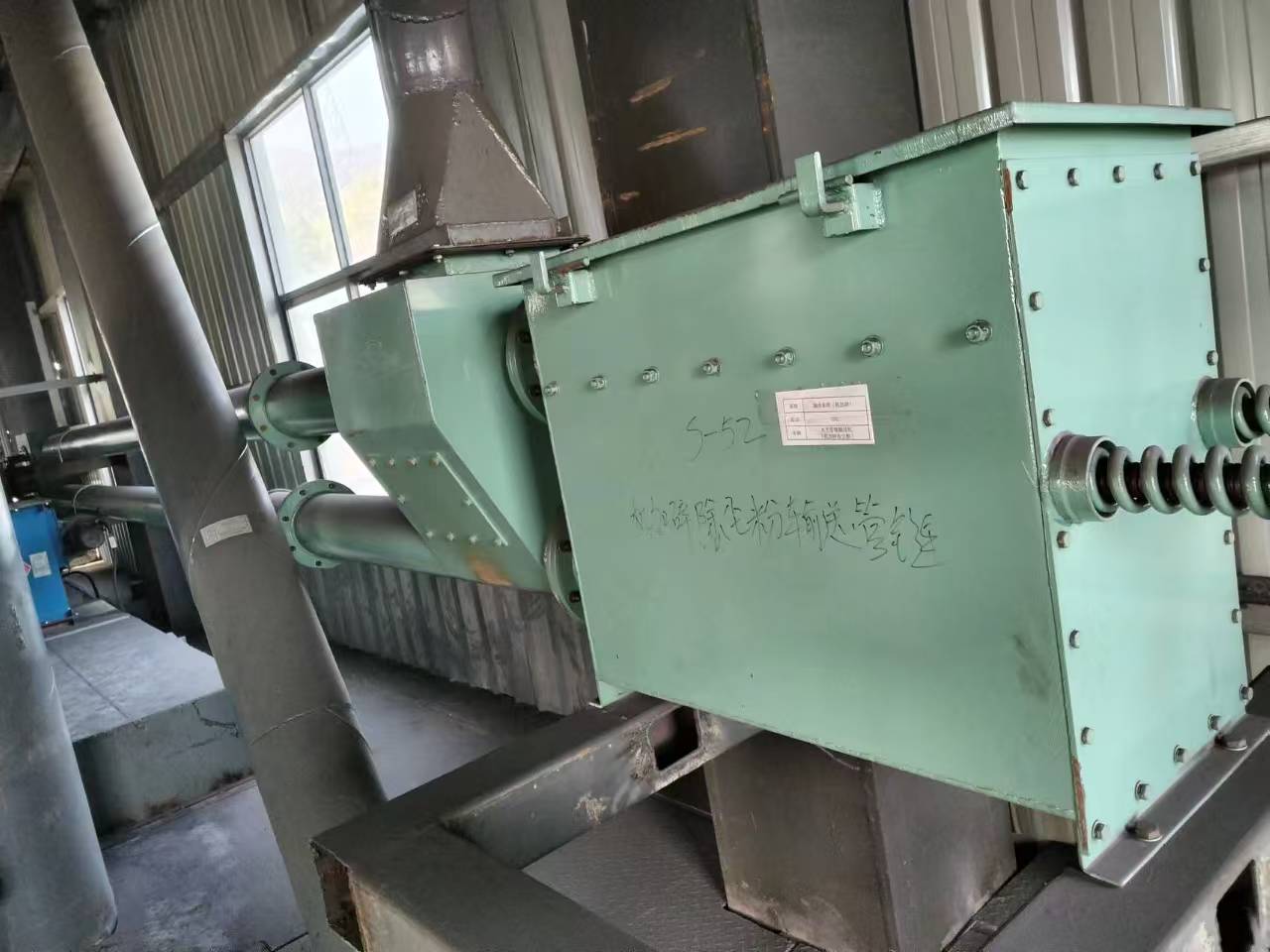

Limestone Powder Project
Capacity: 15 TPH
Distance: 50 m
Configuration: Horizontal
Material: Limestone Powder

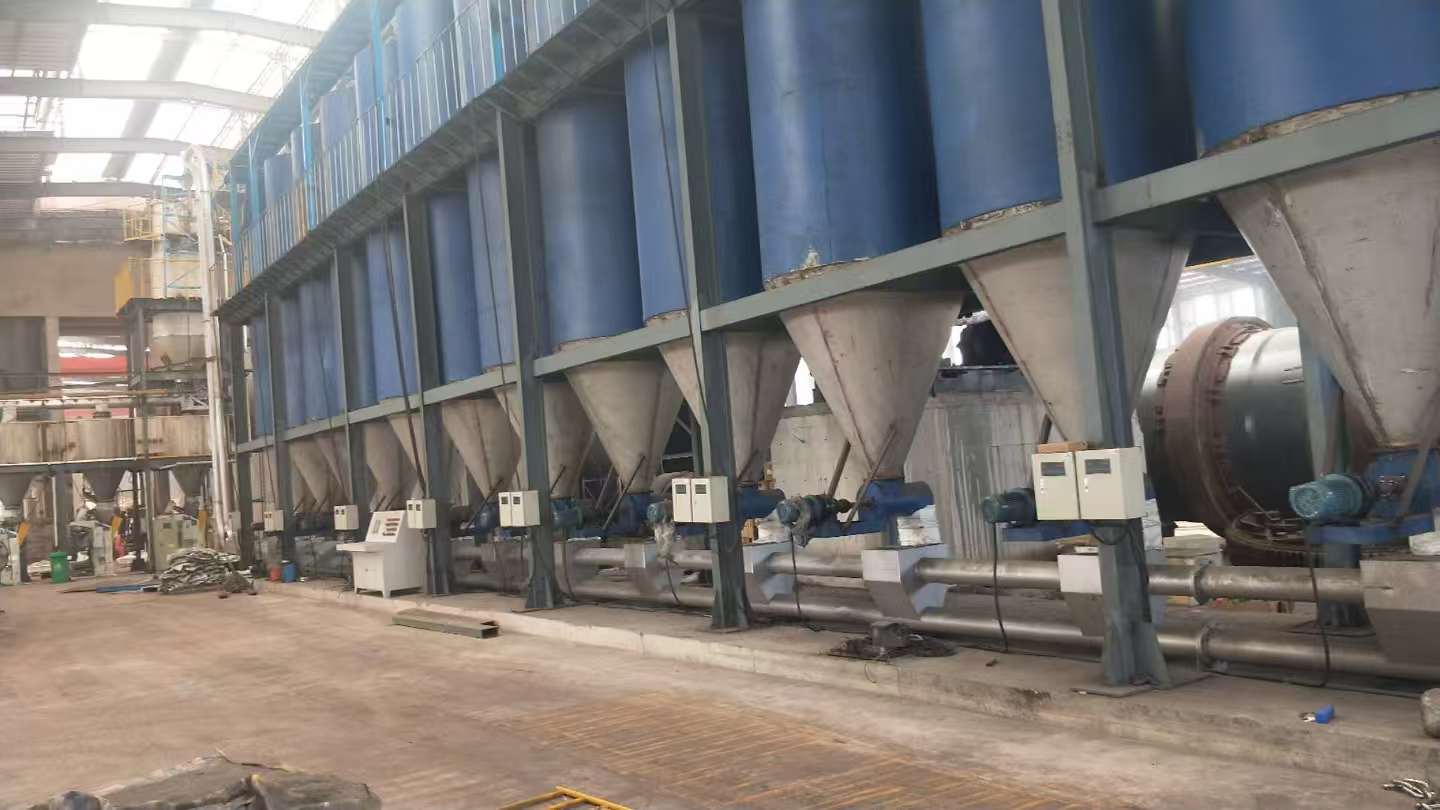

Multi Silo Feeding System
Capacity: 30 TPH
Configuration: Multiple Inlet
Material: Various Powders

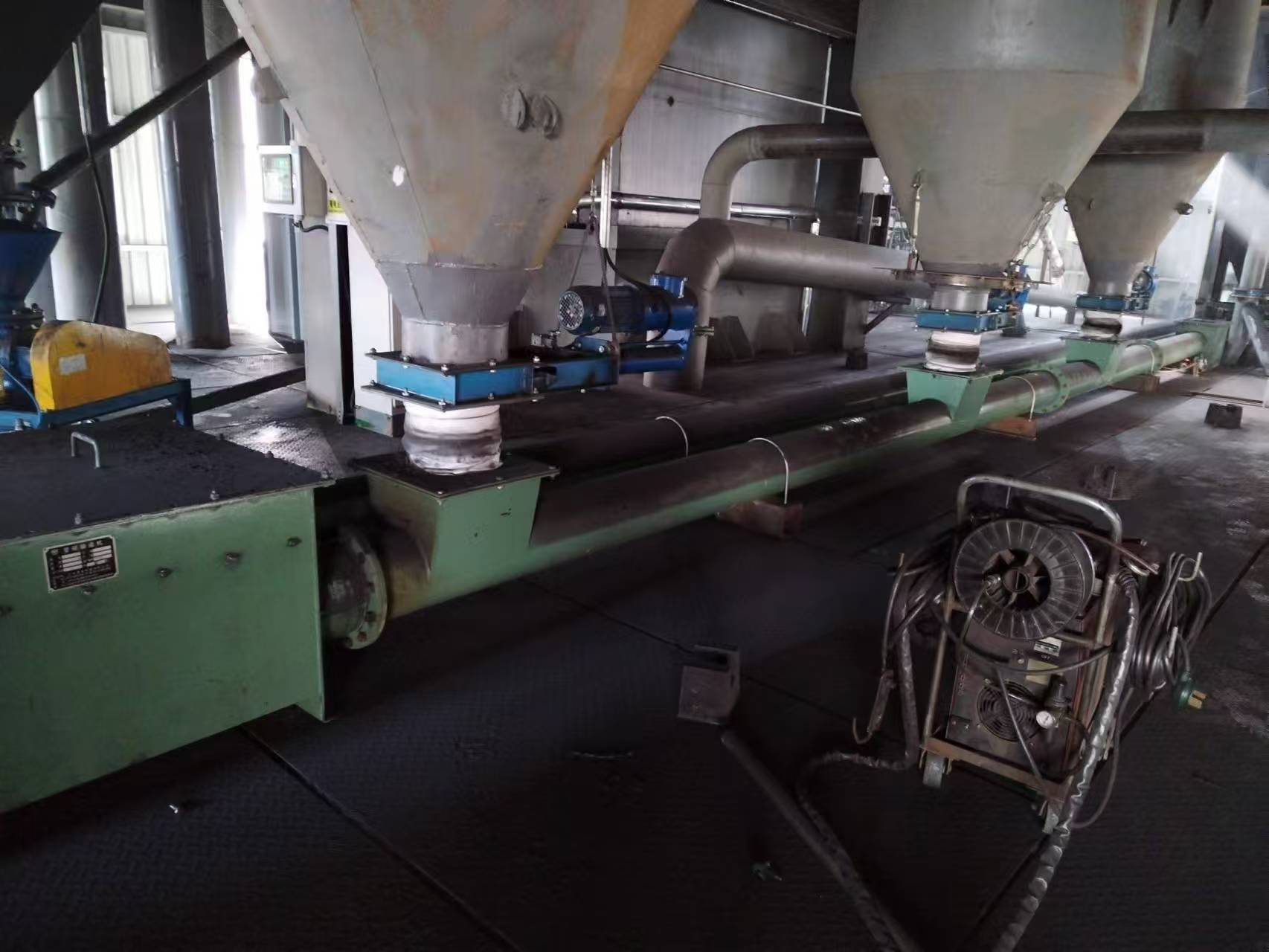

Chemical Additive Transfer
Capacity: 10 TPH
Distance: 45 m
Configuration: Vertical + Horizontal
Material: Chemical Additives

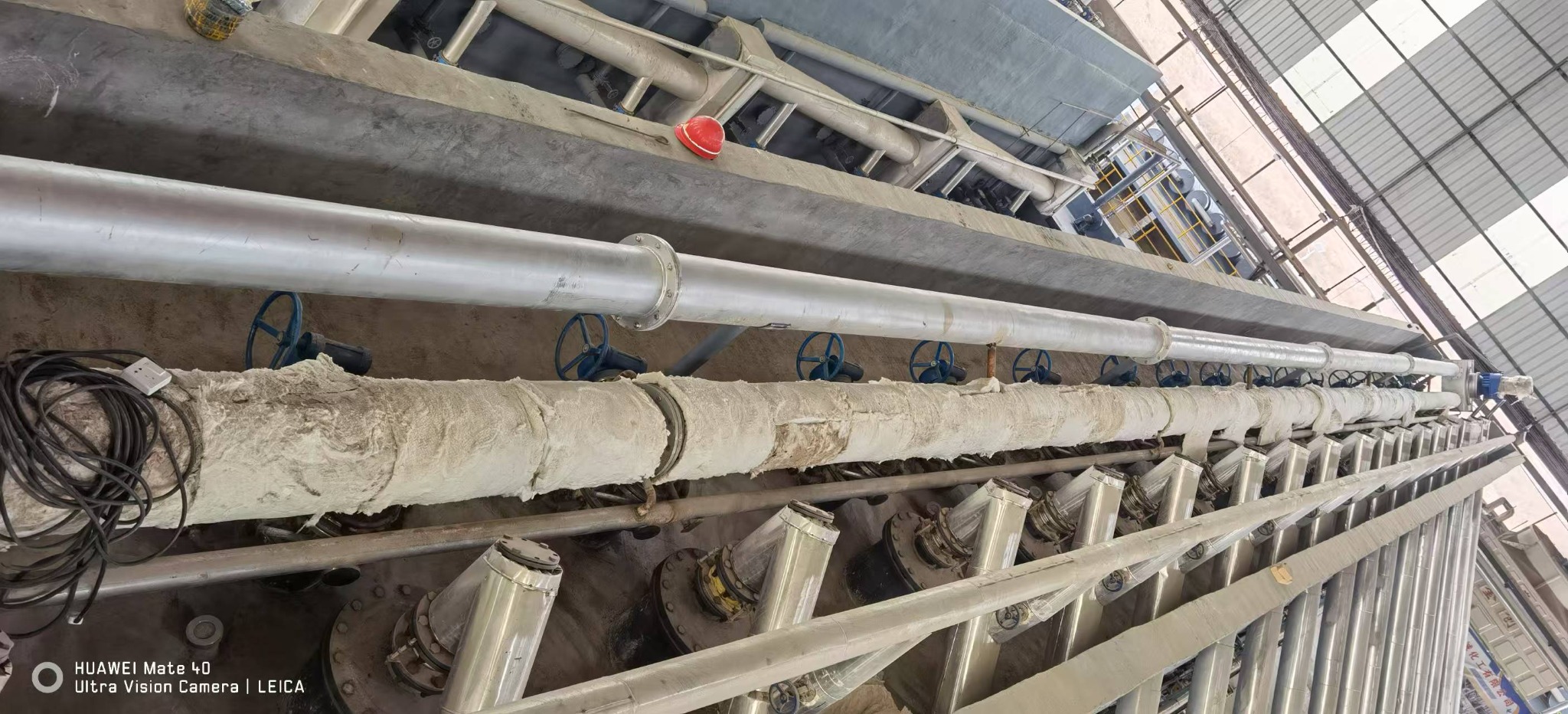

Cooling Water System
Configuration: Closed Loop
Application: Cooling Water
Industry: Chemical
Tube Drag Conveyor vs Other Conveyors
| Feature | Tube Drag Conveyor | Screw Conveyor | Pneumatic Conveyor |
|---|---|---|---|
| Dust-Free | ✓ | △ | ✓ |
| Gentle Handling | ✓ | × | × |
| Flexible Routing | ✓ | × | ✓ |
| Multiple Inlet & Outlet | ✓ | × | △ |
| Energy Consumption | ✓ | △ | × |
| Product Degradation | ✓ | △ | × |
| Maintenance | △ | △ | × |
Industries We Serve
⚗Chemical
♨Food
✚Pharmaceutical
▣Battery Materials
△Minerals
▥Building Materials
Technical Specifications
| Model | Capacity (m³/h) | Motor Power (kW) |
|---|---|---|
| GLS80 | 4 | 4 |
| GLS100 | 8 | 5.5 |
| GLS150 | 16 | 7.5 |
| GLS200 | 28 | 11 |
| GLS250 | 48 | 15 |
| GLS300 | 60 | 18.5 |
| GLS400 | 80 | 22 |
Get a Quick Quote
Frequently Asked Questions
What is a tube drag chain conveyor?
It is a sealed tube conveying system that uses chain and discs to move powders, granules and bulk solids gently through a designed route.
What materials can be conveyed?
Common materials include chemical powders, food powders, minerals, graphite, titanium dioxide, limestone powder, additives and granules.
Can it convey abrasive materials?
Yes. Pipe thickness, chain design and wear-resistant options can be selected according to the material.
How far and how high can it convey?
The final distance and height depend on material properties, capacity, route layout and number of bends. UNITFINE engineers can help calculate the solution.
How many inlet and outlet points can be installed?
Multiple inlets and outlets can be configured for storage silos, mixers, packaging lines or process equipment.
What are the advantages over screw conveyors?
A tube chain conveyor offers more flexible routing, sealed dust control, longer complex routes and multiple discharge options.
Need a Custom Solution?
Tell us your material, capacity and conveying requirements. Our engineers will provide you with the best solution.
Contact Engineers →
